1.2080 / D3 / SKD1 / Cr12 Cold Work Special Tool Steel Flat Bar
To make the cold work mould fits low impact load and with high wear resistance.
Equivalent grades:
| GB(China) | DIN(German) | AISI(USA) | JIS(Japan) |
| Cr12 | 1.2080 | D3 | SKD1 |
Application:
Used for making small impact, high quality wear cold-punching mould;
1) Used for high tolerance and long service life of all kinds of cold stamping die and cold shear blade, thread rolling plate, etc.;
2) Tabletting punches and sleeves for corrosive;
3) Suitable for complex deformation of mould.
Available size(mm):
| Size of SKD1/1.2080 Cold Work Steel |
| Round bar | Diameter(mm) | Length (mm) | |
| Max:800 | Max: 9000 | |
| Steel plate | Thickness(mm) | Width (mm) | Length (mm) |
| Max:100 | Max:1000 | Max:6000 |
Features:
1) High hardenability, high hardness, high wear resistance and good toughness, quenching deformation, etc;
2) High carbon high chromium tool steel;
3) Good machinablity and inoxidizability;
4) Immune from sinking in use,High resistance to heavy pressure;
Specification:
| Chemical Compositons |
| Grade | C | Si | Mn | P | S | Cr | W | V |
| Cr12 | 2.00-2.30 | ≤0.40 | ≤0.40 | ≤0.030 | ≤0.035 | 11.50-13.0 | - | - |
| D3 | 2.00-2.30 | 0.10-0.60 | 0.10-0.60 | ≤0.030 | ≤0.030 | 11.00-13.50 | ≤1.00 | ≤1.00 |
| 1.2080 | 1.90-2.20 | 0.10-0.60 | 0.20-0.60 | ≤0.030 | ≤0.030 | 11.00-13.50 | - | - |
| SKD1 | 1.90-2.20 | 0.10-0.60 | 0.20-0.60 | ≤0.030 | ≤0.030 | 11.00-13.50 | - | - |
Delivery condition:
For abundant stock, 15-20 days.
For customized products, 30-50 days.
Packing: Standard export packing or according to customers' request.
All the sizes as require can be customerized as fresh production with MOQ,products of required specifications can be developed/produced per international, chinese or industry standards, or based on agreements with customers.
| Hot sale products for hot/cold work mould Steel |
| STANDARD/GRADE | Flat Bar Size(mm) | Round bar Size(mm) | Technics |
| DIN | AISM | JIS | GB(China) | Thickness | Width | Length | Diameter | Length |
| 1.2311 | P20 | PDS-3 | 3Cr2Mo | 10-700 | 155-2200 | 2000-6000 | 20-200 | 2000-6000 | Forged,
Hot Rolled |
| 1.2738 | P20+Ni | - | 3Cr2NiMnMo | 10-1100 | 155-2200 | 2000-6000 | 20-200 | 2000-6000 |
| 1.2379 | D2 | SKD10 | SKD10 | 10-200 | 155-810 | 2000-6000 | 20-200 | 3000-6000 |
| 1.2080 | D3 | SKD1 | 3Cr2Mo | 10-200 | 155-810 | 2000-6000 | 20-200 | 3000-6000 |
| 1.2083 | 420 | - | 4Cr13 | 10-500 | 155-1200 | 2000-6000 | 20-300 | 3000-6000 |
| 1.2344 | H13 | SKD61 | 4Cr5MoSiV1 | 10-500 | 155-1600 | 2000-6000 | 20-400 | 3000-6000 |
| 1.2510 | O1 | SKS3 | 9CrWMn | 10-200 | 155-810 | 2000-6000 | 20-200 | 3000-6000 |
| 1.7225 | SAE4140 | SCM440 | 42CrMo | 10-200 | 155-2200 | 2000-6000 | 20-200 | 3000-6000 |
| 1.2010 | SAE1050 | S50C | 50# | 10-700 | 155-2200 | 3000-6000 | 10-300 | 3000-6000 | Hot Rolled |
| 1.1191 | SAE1045 | S45C | 45# | 10-700 | 155-2200 | 3000-6000 | 10-300 | 3000-6000 |

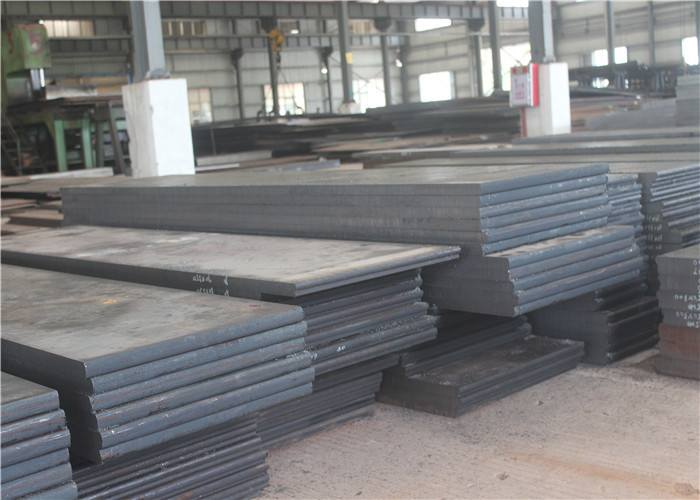

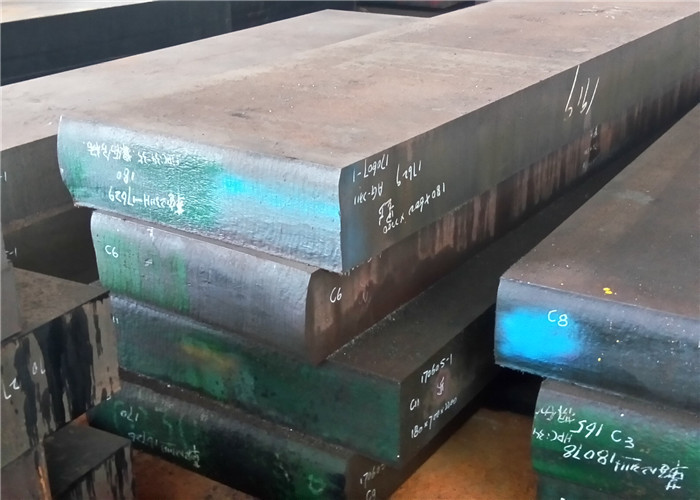

Products show:
